Lazer Lamps Fiat Ducato (2014+) Triple-R 750 Grille Kit PN: GK-FD-G2
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.
(incl. VAT £575.10)
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

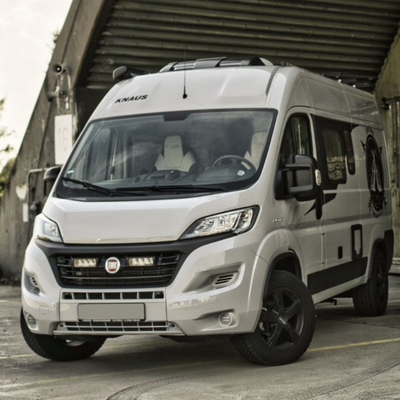

The Fiat Ducato kit, designed for 2014 vehicles onwards, includes a pair of Triple-R 750 High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.
With lighting performance borne out of development and testing work done at the highest levels of professional motorsport, despite the sleek styling and seamless integration, it is at night when the installation really impresses. Complete with Triple-R 750, the kit boasts 8,200 raw lumens, delivering 1 lux to over 600m; lighting performance that needs to be seen to be believed, but still within ECE regulations, meaning the lights can operate with your standard high beam driving lights.
Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.
- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom fit for Fiat Ducato (2014+)
- Designed for use with Triple-R 750 High Performance LED Spotlights
- Added option for white or amber position/side light function (Standard model only)
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Brackets made from high strength, UV -stable, ASA material
- Fully road-legal
- 5-year warranty
- Made in Britain
What's included:
- x2 Triple-R 750 High Performance LED Spotlights
- x1 Mounting Kit (comprising 4x Brackets and fasteners)
- x1 Cutting Guide (comprising 4x Brackets)
- x1 Two-Lamp Wiring Kit
- x1 Installation instructions
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| Start-Up* | 100 ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| Start-Up* | 100 ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| 1 lx Line | 612 metres |
| 3 lx Line | 354 metres |
*'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
