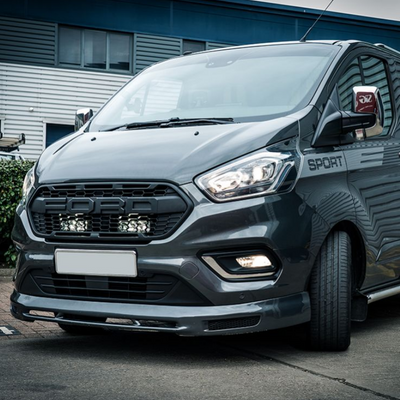

Lazer Lamps Ford Transit Custom 'Trail Edition' (2018+) Triple-R 750 Bumper Beam Mounting Kit PN: VIFK-FTC-02K
For an OE quality, robust and entirely secure auxiliary spotlight installation, the Bumper Beam Mounting Kit for the Ford Transit Custom Trail (2018+) is specially designed and engineered to fit seamlessly within the lower grille, secured to the bumper beam of the vehicle, ensuring the installation is completely secure, with extra protection against theft.
(incl. VAT £535.25)
For an OE quality, robust and entirely secure auxiliary spotlight installation, the Bumper Beam Mounting Kit for the Ford Transit Custom Trail (2018+) is specially designed and engineered to fit seamlessly within the lower grille, secured to the bumper beam of the vehicle, ensuring the installation is completely secure, with extra protection against theft.
Compatible with either our Triple-R 750 Standard or Elite, which has been newly upgraded to the latest LED technology for 2020/21. The standard variant, now with integrated with amber or white position light function for added styling to ensure your vehicle shines day and night!
The brackets are made from 3mm mild steel, with e-coat pre-treatment and satin black powder coat to guarantee your installation remains in excellent condition for years to come. The bumper beam mounting kit comes complete with fasteners and a stay-bar to avoid vibrations, keeping the installation robust and rigid.
With no compromises in component parts or production techniques, as with all Lazer products, the products are backed up by our comprehensive 5yr warranty.
- Auxiliary spotlight installation for Ford Transit Custom Trail (2018+)
- Compatible with Triple-R 750 Standard or Elite
- Fully robust and secure, with extra protection against theft
- Vehicle wiring kits and CANbus Interfaces available
- Fully road-legal
- 5-year warranty
- Made in Britain
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| Start-Up* | 100 ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| Start-Up* | 100 ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| 1 lx Line | 612 metres |
| 3 lx Line | 354 metres |
*'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
