Lazer Lamps Nissan Patrol Y62 (Series 4) Triple-R 750 Grille Kit PN: GK-Y62-01-G2
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.
(incl. VAT £575.10)
For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits are bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure.

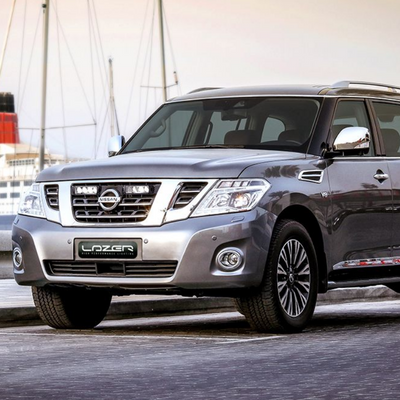

The Nissan Patrol Y62 kit, designed for series 4 (2018-2020) vehicles, features 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Specially manufactured from a carbon-fibre and nylon composite material (CF-PA12), material specially selected for the Y62 to withstand extremes of temperature, the brackets provide excellent strength and UV stability, to ensure your installation is fully weather and chemical resistant staying in great condition year after year.
Lazer Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED Spotlights.
Where the vehicle has Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these instances it will be necessary to complete the electrical installation using a Lazer CAN Interface. For advice on how to check for a 12V high beam signal, please click here.
- Bespoke mounting bracket kit for Lazer LED Spotlight installation
- Custom fit for Nissan Patrol Y62 (series 4)
- Mounting kits include: 4x brackets and fasteners
- Made from carbon-fibre and nylon composite material to withstand extremes of temperature
- Optimised for use with Triple-R 750 LED Spotlights
- Added option for white or amber position/side light function (Standard model only)
- Wiring harness kits available
- 5-year warranty
- Made in Britain
What's included:
- x2 Triple-R 750 High Performance LED Spotlights
- x1 Mounting Kit (comprising 4x Brackets and fasteners)
- x1 Cutting Guide (comprising 4x Brackets)
- x1 Two-Lamp Wiring Kit
- x1 Installation instructions
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| Start-Up* | 100 ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| Voltage Range | 10-32V |
| LED Life | 50,000 hours |
| Weight | 2 kg |
| HIGH BEAM FUNCTION | |
| Total Luminous Flux | 9240 Lm |
| Total Driver 'FOV' Flux † | 5572 Lm |
| Colour Temperature | 5000K |
| Number of High Output LEDs | 2 x 4 |
| Power Consumption | 88 Watts |
| Current Draw (at 14.4V) | 6.2 Amps |
| Start-Up* | 100 ms |
| CERTIFICATION | |
| High Beam | ECE R112 |
| E-Mark Ref | 35 x2 |
| Position Light (White only) | ECE R7 |
| PHOTOMETRIC DATA | |
| Horizontal Beam Angle | 19 Degrees |
| 0.25 lx Line | 1225 metres |
| 0.5 lx Line | 866 metres |
| 1 lx Line | 612 metres |
| 3 lx Line | 354 metres |
*'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
