Lazer Lamps Two-Lamp Wiring Kit (Position Light, 12V) PN: 2L-LP-PL-120

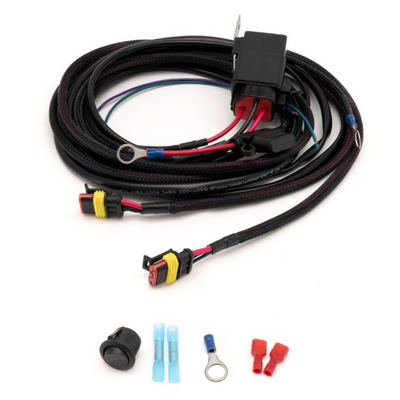

The ideal solution for wiring a pair of Lazer high performance LED spotlights, which also feature integrated Side/Position Light function. The setup is quick, easy, and reliable with 3-pin superseal connections and no configuration procedures. The kit features a 12V relay (in waterproof housing), 30A fuse, a battery terminal at one end, and 1.2m of flex on both lamp cables, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch (for high beam function) which can be mounted inside your vehicle.

All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

• Two-Lamp Wiring Kit for Lazer products with integrated Position Light function
• 1.2m cable lengths
• Includes 12V relay and 30 amp fuse
• Relay holder approved to IP53 when mounted in a vertical (upright) orientation
• Superseal connections
• Includes optional on/off switch for independent operation of high beam
• Braided cable sections for added protection in engine bay

Compatible with:

• Triple-R 750 (Gen2)
• Triple-R 850 (Gen2)
• Triple-R 1000 (Gen2)
• Triple-R 1250 (Gen2)
• Linear-12 Elite (with Position Light)
• Linear-18 Elite (with Position Light)
• Sentinel (Standard with Position Light)
