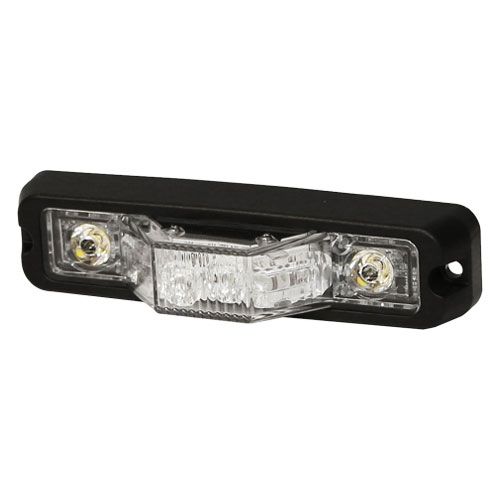

ECCO ED3777A Vision Alert ED3777 Series R65 180 Degree Intersection Amber LED Strobe PN: ED3777A

The ED3777 directional LEDs are bright and versatile 180-degree warning lights, with work-light and puddle-light combinations that are suited to a wide variety of applications.

Their low profile, narrow shape, and multiple mounting options (surface, edge, self-adhesive and permanent) provide superior flexibility when positioning the lights for optimum warning capability.

• Six LEDs per color
• 13 flash patterns
• Synchronizable
• Aluminum housing, polycarbonate lens
• Four mounting options (hardware included)
• SAE J595 Class I
• California Title 13, R65, CE, R10, IP67
• Temperature Range: -22ºF to +122ºF (-30ºC to +50ºC)
• Warranty: 3 Years
• Specifications :
• Colors: Amber, Blue, Red, Green, White, Amber/Blue, Amber/Green, Amber/Red, Amber/White, Blue/White, Red/Blue, Red/White
• Voltage: 12-24
• Amps: 1.8 (Blue, Red, Green, White), 3.6 (Amber/Blue, Amber/Green, Amber/Red, Amber/White, Blue/White, Red/Blue, Red/White)
• Temperature Range: 12-24
• Flash Pattern: 13
• Warranty: 3 Year
• Voltage: SAE J595 Class I, CA Title 13, R65, CE, R10, IP67

Models PART NO. and COLOURS

• ED3777A Amber
• ED3777B Blue
• ED3777R Red
• ED3777G Green
• ED3777W White
• ED3777AB Amber/Blue
• ED3777AG Amber/Green
• ED3777AR Amber/Red
• ED3777AW Amber/White
• ED3777BW Blue/White
• ED3777RB Red/Blue
• ED3777RW Red/White

• Six LEDs per colour
• 13 flash patterns
• Synchronisable
• Aluminium housing, polycarbonate lens
• Four mounting options (hardware included)
• Temperature Range: -30ºC to +50ºC
