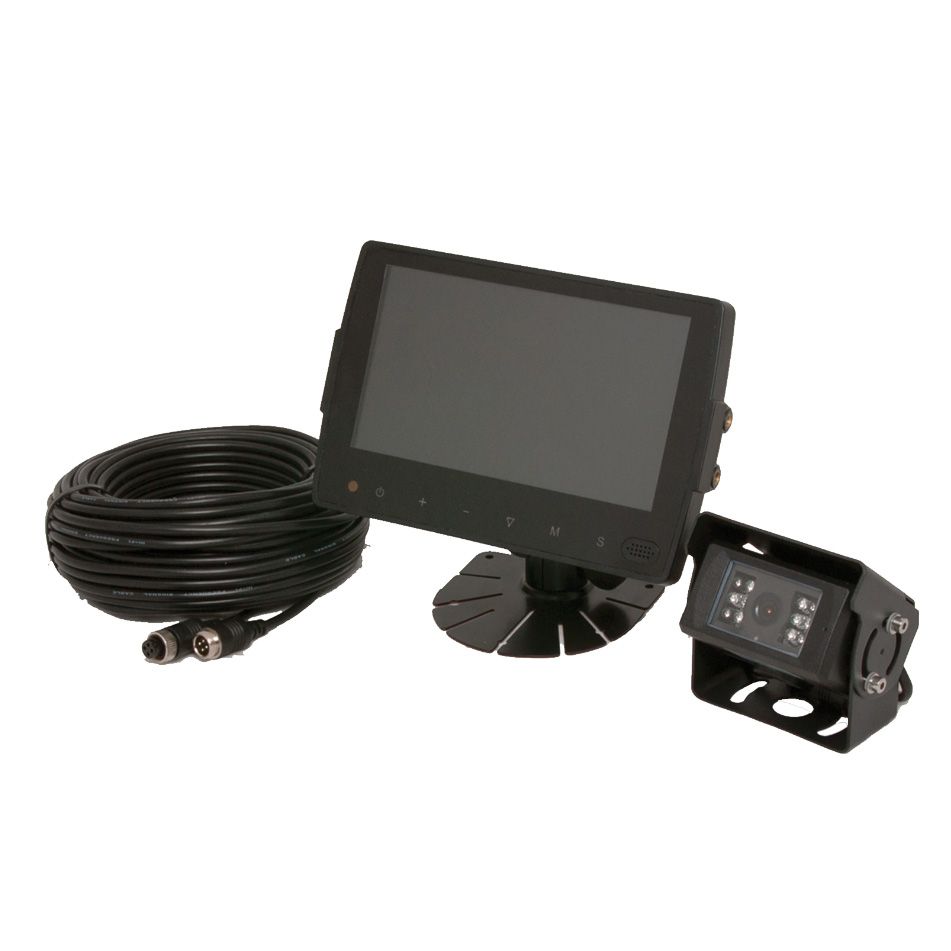

Vision Alert 140-550 Touch Screen 5” TFT LCD colour CCTV Kit PN: 140-550

Vision Alert Touch Screen 5” TFT LCD colour CCTV Kit PN:140-550

The TFT LCD colour CCTV kits with CMOS technology include a wide view angle and high resolution monitor with touch screen features and distance markers, colour CMOS camera, 20m cable, bracket and remote control, everything you need in a quality reversing CCTV system.

Camera [approval IP69K]

• 1/4” Colour CMOS Camera

• System: PAL/NTSC

• Effective pixels: 640 (h) x 480 (v)

• Current consumption: Max 430mA

• Operating temperature: -20oC to + 60oC

• Lens angle: 90o (P) / 90o (N)

Monitor

• 5” or 7” TFT LCD colour monitor with digital touch screen

• Distance markers

• Automatically switches to back-up, left or right side camera views

• Picture image adjustable for horizontal, vertical, mirror and normal viewing

• 8 languages

• Automatic backlighting for buttons

• Full function remote control

• Multiple video formats available Auto/PAL/NTSC

• Up to 3 AV inputs

• On-board speaker

• Power consumption: 5W

• Resolution: 640 x 480 for 5” monitor, 800 x 480 for 7” monitor

• Operating temperature: -20oC to +70oC

• Dual voltage
